Specifications

December 28, 2022No Comments

Length

20.5M

Beam

6.15M

Draft

3.00M

Mast

25.25M

THE PERFECT 20 meter DAY YACHT

Adamas is the perfect new day yacht with all necessary amenities compiled in just 30ft. The clever deck layout and pioneering solutions provide the functionality of a 40 ft experience in a compact power cruiser with cabin and toilet with full standing height, tanning space and hard-top protected kitchen and dining areas.

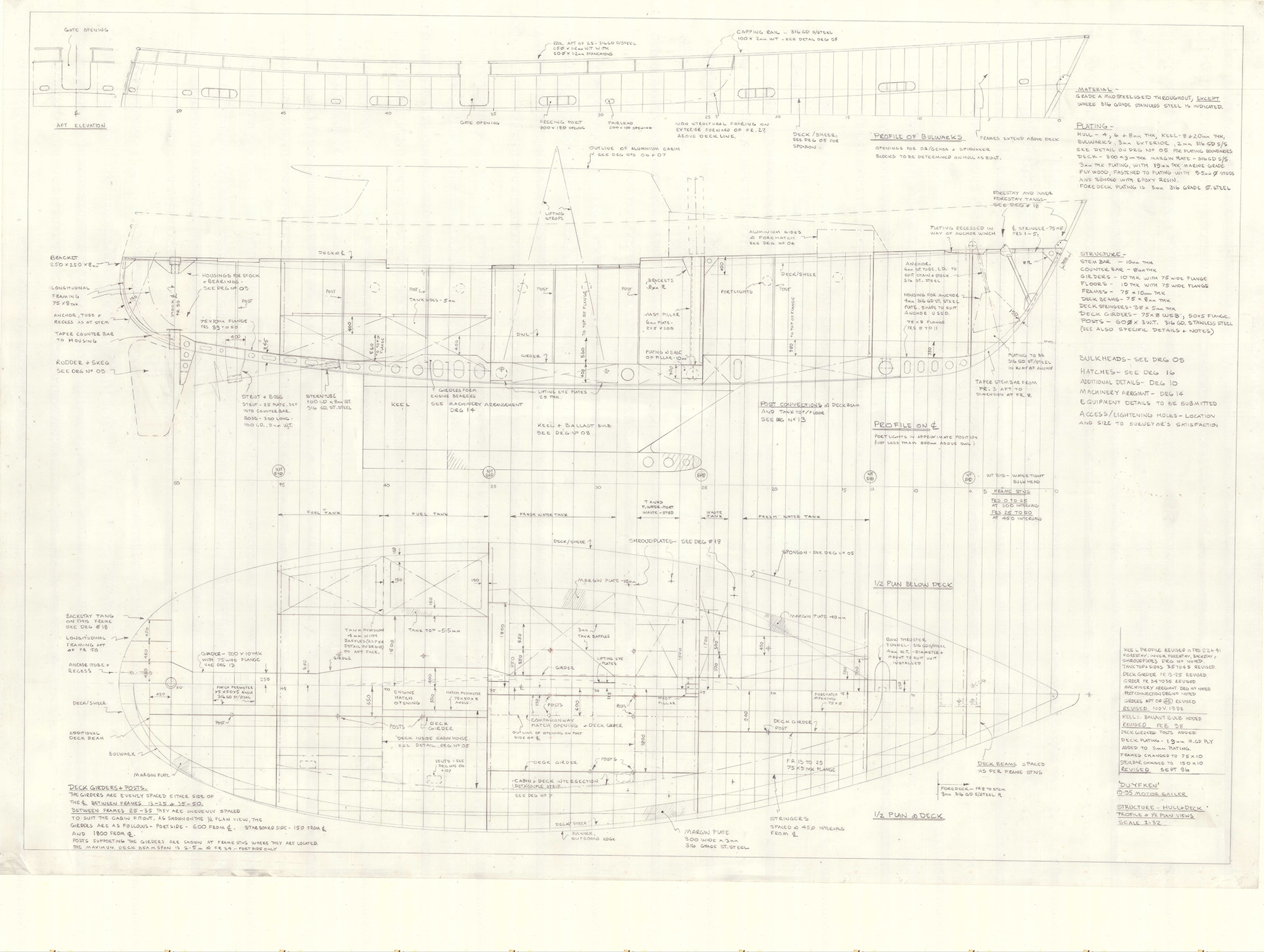

Structure Hull + Deck Scale 1:32

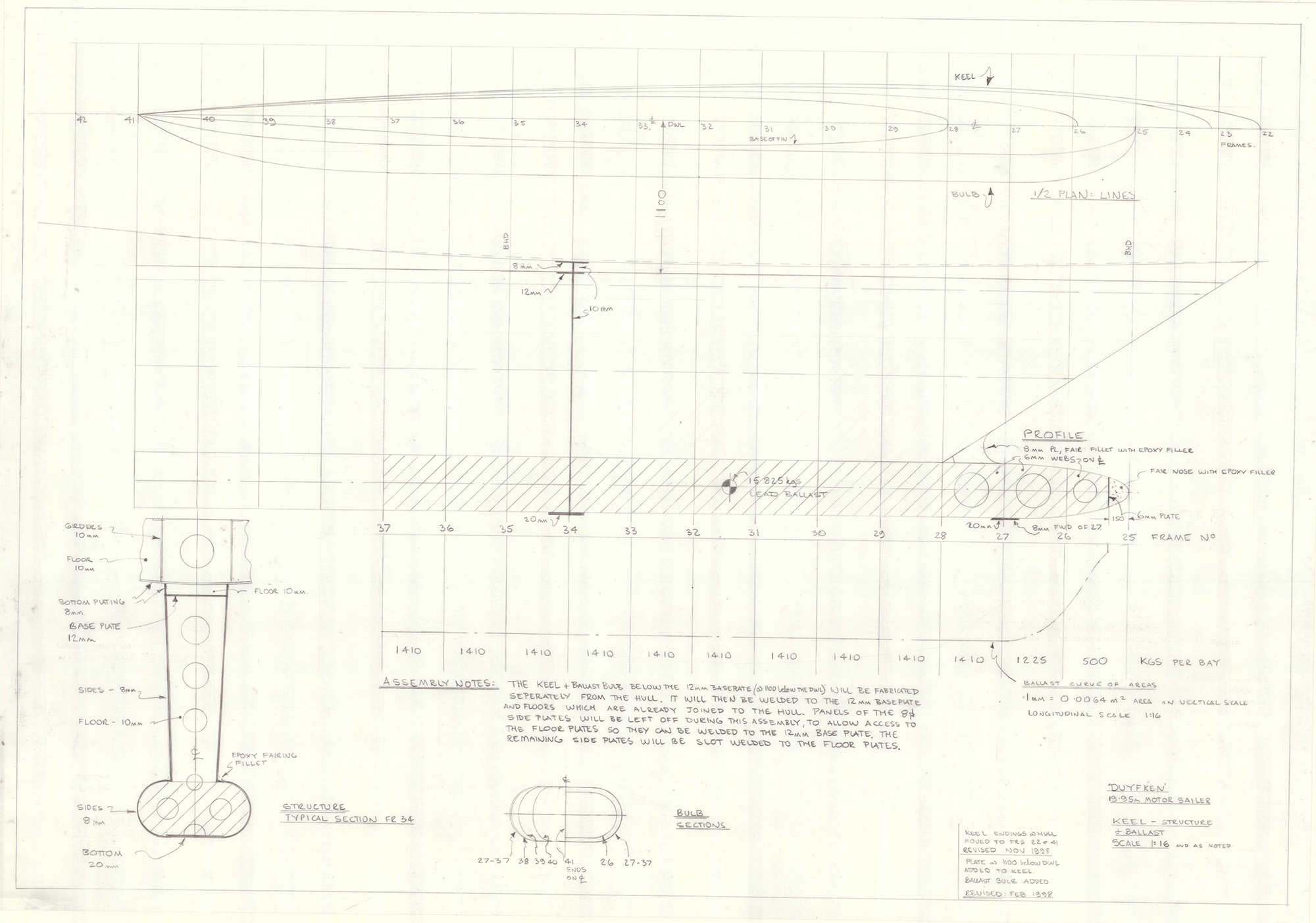

Keel - Structure + Ballast • Scale 1:16

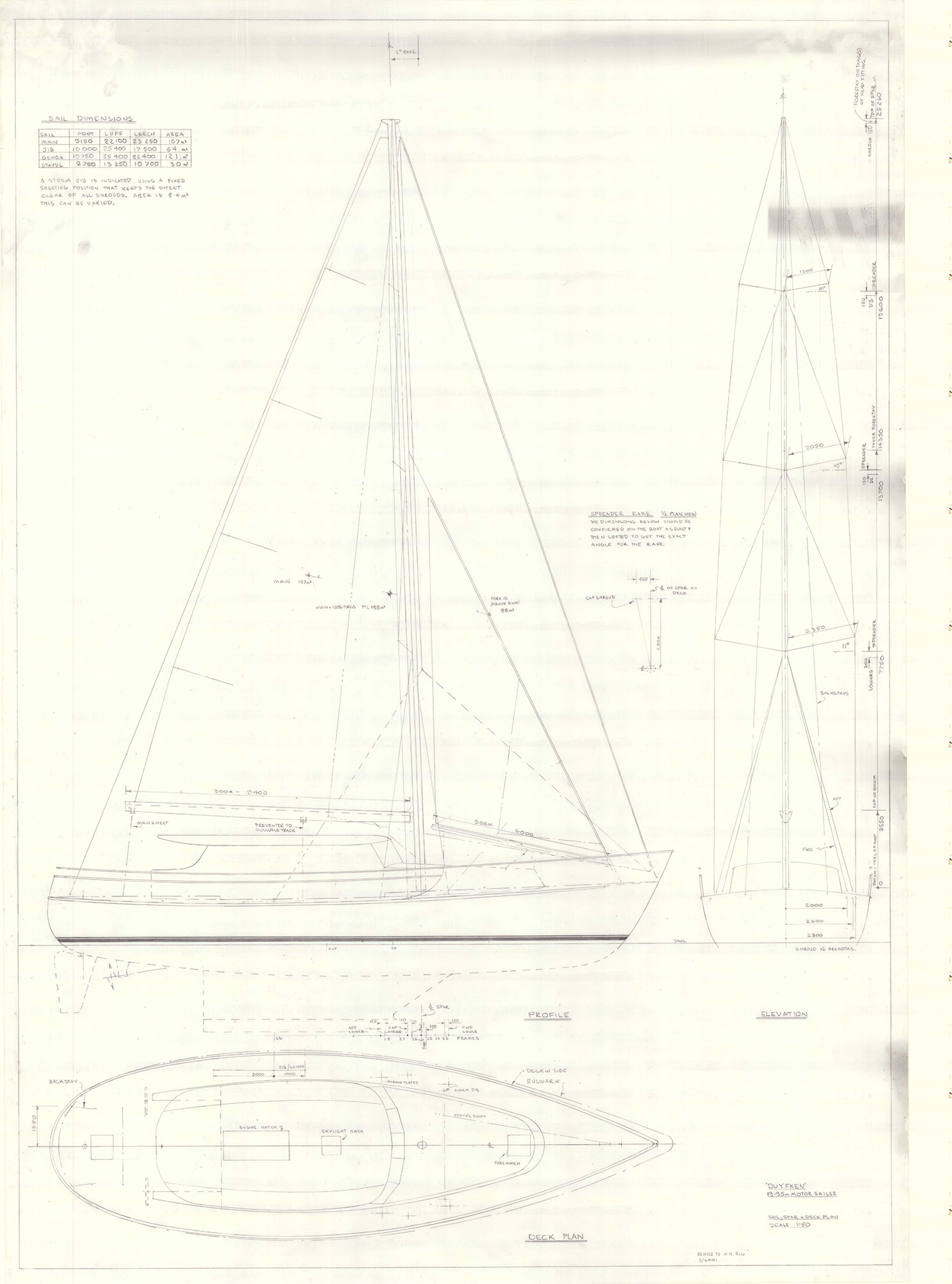

Sail Spar + Deck Plan • Scale 1:50

LOA: 20.5M
BEAM: 6.15
DRAFT :3.0M
MAST: 25.25m
GROSS TN: 70
Engine: Cumnins 6CTA 8.3 M1 300hp
FUEL: 7250
DAY TANK: 240 LTRS
WATER: 4000
GREY TANK:380LTRS
BLACK TANKS: 40Oltr
GENERATOR: Northern lights 10kva
Water maker: 140ltrs per hour
Hull: Steel to deck 8mm -6mm
Keel: Steel plate from 20mmm to 8mm depending on sections
Bulkheads: Steel beams 10-12mm with cross beams of 8mm
Water tight bulk heads: four including crash zone at bow.

Ground Tackle

Rockna 110kg with 110m chain 16mm with 20m rode
CQR 80kg with 60m chain 16mm with 40m rode
Muir 6000 Hydraulic winch

Stern Anchor

MUIR Hydraulic winch with remote control, Internal Stern Chain locker, chain tubes . We do not utilise this currently due to cruising locations currently visiting

Solar

SunPower Maxon 3 430w panels x 4 (1720W)
Victron 250/60 MMPT x 2

Batteries

House 800 amp @ 24V AGM , charged from 24v engine alternator, Solar and Generator options
Engine twin 100amps 24V start batteries- supported by Victron multistage 240v charger, battery switch to house for emergency
Generator 12v Start battery with a Victron multistage charger when on shore power
Helm radios and instruments linked to a lithium 100amp 24v battery and Victron charger (chargers from house/shore) as back up for operational redundancy.

Sails

Forestay Genoa 115sqm, operated by hydraulic Furler supported by port and starboard hydraulic winches. We also have a spare Yankee for this forstay should we head to less tropical locations to manage higher wind conditions.
Inner Stay Sail /Gib, manual Furler operated from the forward cockpit
Main Sail, fully battened with two reefs. Operated by hydraulic winch in the forward cockpit
Deck gear and tracks available for a spinnaker/Asym. Currently not in use but considering based on travel plans.

Tender

Aurora 3.8m fibre glass hull with a 40ph mercury

Helm

Navigation is Furuno Radar and Time Zero . We duplicate with Furuno MFD and stand alone high grade PC with Time Zero. All is connected to IPAD and phones for back up.
AIS is Furuno
Independent Furuno GPS navigator
VHF x 2 units
Furuno Autopilot
Steering is independent Auto pilot hydraulics, secondary hydraulic manual helm steering wheel and additional Joy Stick steering

Galley

SMEG four burner cooktop
SMEG electric oven 240v
Dometic fridge freezer 60ltr
Isotherm fridge 90ltr 24v/240v

Lower Lobby

Isotherm fridge 90ltr 24v/240v
Isotherm freezer 90ltr 24v/240v
Meile washer Dryer 240v
Laundry tub and cabinet with Hot and Cold water

Hot Water

Kumar 75ltr 24v/240v connections for heating

Bilge Pumps

4x Commercial grade mechanical bilge pumps supported from main engine
4 x 24V smaller bilge pumps in each water tight bulk head locations
240v large portable submersible bilge pump
Manual bilge pump plumbed to main deck connection. Valves via the commercial bilge pump system.

Fire Safety

Commercial grade fire extinguisher system electronically wired to main helm. Full engine room auto extinguisher, all cabins alarmed and sensors.

Anchor Locker

Full walk in forward anchor locker room with additional storage cupboards
Two separate anchor chain wells

Accommodation

Forward cabin has one double and two single bunks with ensuite shower and toilet

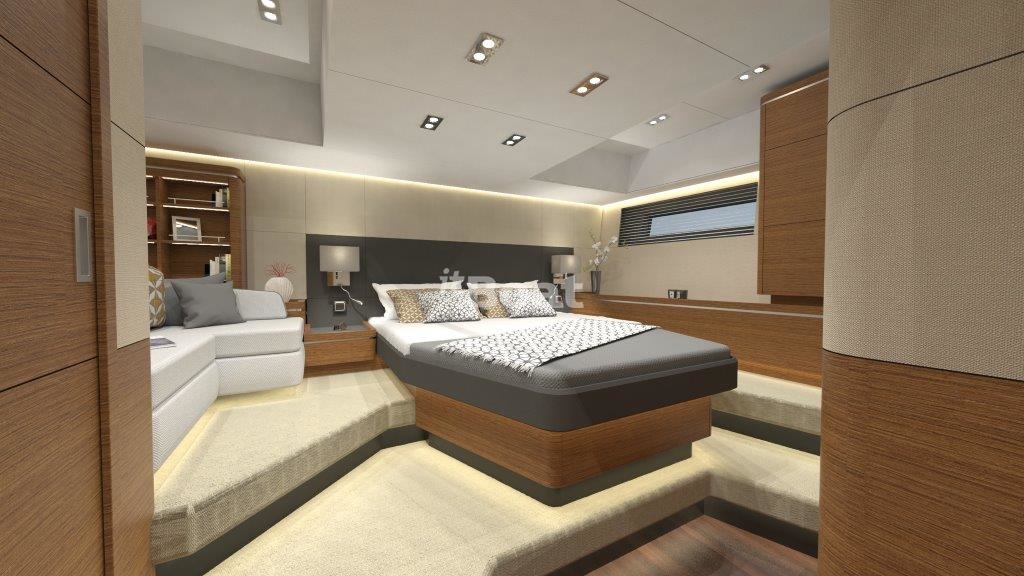

Master cabin is midships ,queen beed , robe and ensuite shower and toilet
Stern crew cabin has two bunks and separate toilet and shower.

Toilets

TECHMA ELECTRIC
